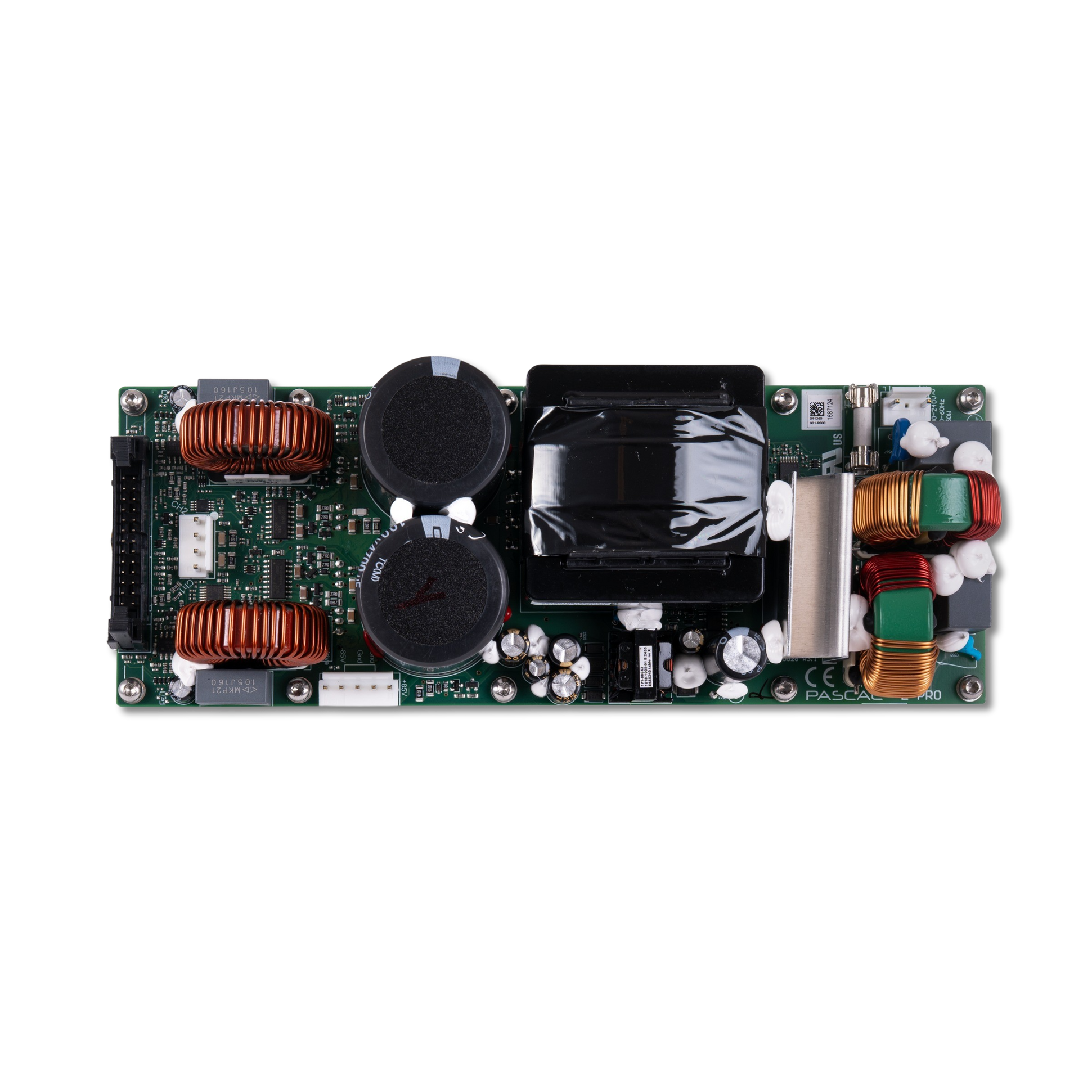

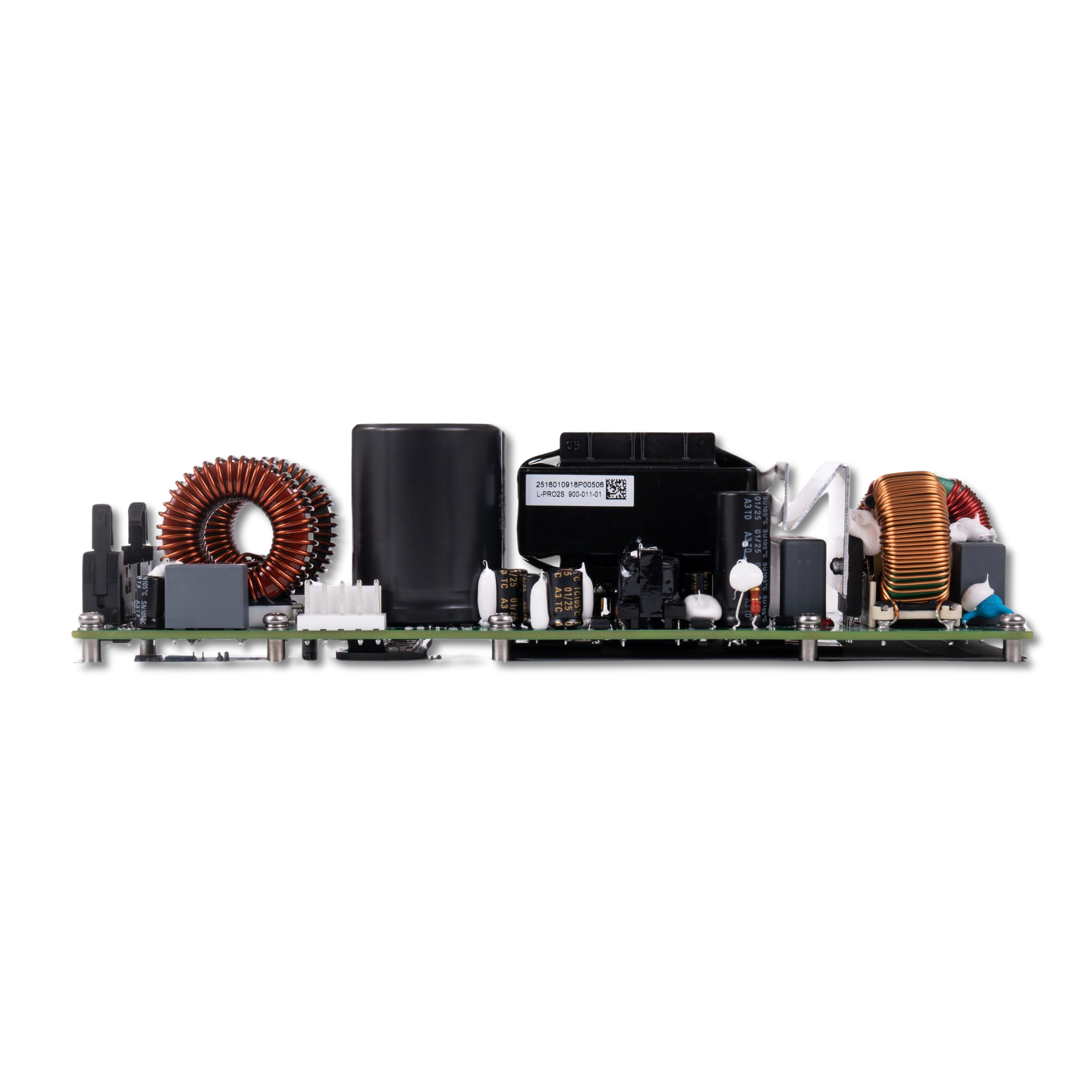

L-PRO2S Series Powered Speaker and 100/70V Line Amplifier Modules

Pascal L-PRO2S Series – an ultra-compact power platform for powered speaker and 100/70V line applications, featuring direct drive, energy star compliance and integrated power supply with PFC.

Specifications
Features
Downloads
Contact Pascal Sales
L-PRO2S Specifications
Power Ratings (RMS @ 1% THD @ 120VAC and 230VAC) 100/70 V 8 Ω 4 Ω 2.7 Ω
Output power per channel N/A 2 x 400 W 2 x 800 W 2 x 1200 W*
Output power bridge mode 1500 W / TBD 1500 W* 2500 W* N/A
>
  • Output Circuitry
    •
  • UMAC™ Class D - full bandwith PWM modulator with ultra low distortion
    •
  • Output Voltage
    •
  • 85 Vp / 170 Vpp (unloaded) / Bridged 170 Vp / 340 Vpp (unloaded)
    •
  • Amplifier Gain
    •
  • 28.2 dB / 34.2 dB bridge mode
    •
  • Signal To Noise-Ratio
    •
  • > 119 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
    •
  • THD+N (typical)
    •
  • < 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
    •
  • Frequency Response
    •
  • 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
    •
  • Damping Factor
    •
  • >350, each channel (8 Ω load, 1 kHz and below)
    •
  • Protection Circuits
    •
  • Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
    •
  • Readouts & Control options
    •
  • Protect/Disable (mute), Temperature, Clip, Voltage, Auto Standby/Wake-up (3 timings)
    •
  • Power Supply
    •
  • UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
    •
  • Operation Voltage
    •
  • Universal Mains, 85-265V
    •
  • SMPS RMS Power Limit
    •
  • 1500 W (230VAC / 120VAC ) 1300W (100VAC)
    •
  • Aux. Power for DSP
    •
  • ±15 V, +7.5 V, maximum total watt available: L-PRO2S: 8.3 W
    •
  • Standby Consumption
    •
  • < 0.25 W (Green Energy Star & ErP 1275/2008/EC compliant)
    •
  • Dimensions
    •
  • 55 x 80 x 214 mm / 2.2 x 3.1 x 8.5 in
    •
  • Weight
    •
  • 970 g (2.14 lbs)
    •

    * Dynamic headroom power

    L-PRO2S Features
    Dedicated for 100/70V line amplifiers

    The L-PRO2S Series is optimized for the specific requirements for 100/70V line applications. This is evident in the high voltage rails providing direct drive. Energy Star compliance compulsory in many tenders. Extensive protection scheme to protect against fault scenarios during system installation.

    2RU rack installation

    The minimal physical dimensions of the L-PRO2S module gives a dedicated 100/70V line amplifier solution with integrated power supply and direct drive capability that fits into a 2RU rack. Combined with the L-A2 module, it is possible to design multi-channel 100/70V systems with small external dimensions.

    Audiophile Performance

    Pascal’s proprietary UMAC™ Class-D technology delivers unequaled audiophile specifications, including the highest dynamic range and the lowest distortion performance of any comparable pro audio amplifier. This makes the L-PRO2S Series suitable for pro audio applications and for use in high-end Hi-Fi and AV products.

    Universal Mains & PFC

    Pascal’s UREC™ PFC (Power Factor Correction) power supply technology enables universal AC mains operation, eliminating the need for local market specific power regulation products and susceptibility to related reliability issues. The power supply delivers consistent, regulated power worldwide.

    Unmatched Efficiency

    Like the S, T and U-PRO Series, the L-PRO2S Series
    boasts the world’s best system efficiency, minimizing
    the requirement for heat sinks and cooling. The cool
    operation also contributes to the amplifiers’ long
    term reliability.

    Auxiliary Power & Readouts

    Auxiliary power is available for DSP or analog I/O cards. Readouts of protect/mute, temperature and clip signals are accessible for DSP/Network or IO-boards. The L-PRO2S Series features ultra low standby power consumption for EuP2013 and green energy star compliance, with an Auto Standby/Wake-up feature with selectable time settings.

    Interface compatible with S/T/U-PRO2

    The L-PRO2S Series features compatible pin interfacing and identical output voltages to the higher current capable, popular S, T and U-PRO modules; thus the front-end electronics of both the S, T, U and L-PRO2S Series are plug-and-play compatible.

    Safety Approved - EMC Compliant

    Pascal amplifier modules are safety approved and verified for EMC compliance. CB report and UL certificates are available for easy market approval.
